Engineering and Design Philosophy

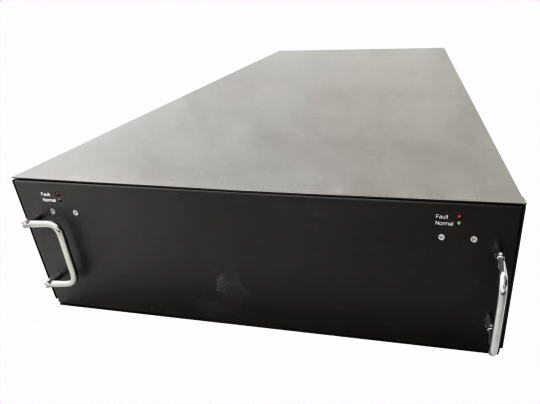

The U3S23H achieves its remarkable performance through direct liquid-to-chip cooling within a U form factor—a design that bridges traditional data center infrastructure with high-performance Bitcoin mining. The unit draws power through a single 380-415V three-phase feed, consolidating the work of roughly six Antminer S19-class machines into a single 3U slot.
This consolidation delivers tangible operational advantages:
-
Fewer Ethernet drops and power whips
-
Reduced water fittings and firmware endpoints
-
Lower aggregate failure rates across cabling and connection layers
-
Simplified monitoring and maintenance
Bitmain’s engineering heritage, established since 2013, underpins the U3S23H’s reliability. The company’s hydro program, mature firmware ecosystem, and extensive RMA network provide the operational backbone that industrial miners require. The 365-day factory warranty on new units reflects confidence in the platform’s durability.
Key Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Bitmain |
| Model | Antminer U3S23H (S23 Hyd 3U) |
| Sub | 1160T |
| Version | 10 |
| Algorithm | SHA256 (BTC/BCH/BSV) |
| Hashrate | 1,160 TH/s (1.16 PH/s) ±3% |
| Power Consumption | 11,020W ±5% |
| Efficiency | 9.5 J/TH |
| Cooling | Direct Liquid-to-Chip Hydro |
| Noise Level | ~50 dB |
| Rack Format | 3U |

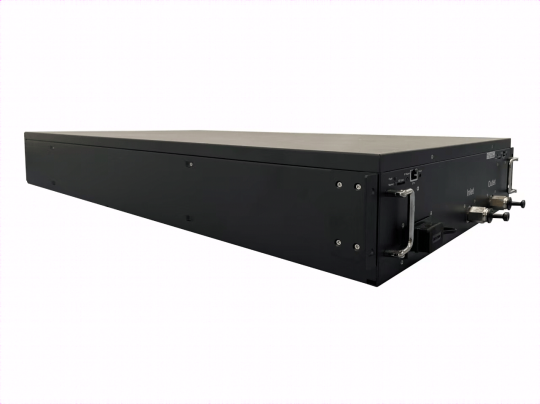

| Dimensions (w/o package) | 900 x 482.6 x 130mm |
| Dimensions (with package) | 1,150 x 640 x 260mm |
| Net Weight | 42.0 kg |
| Gross Weight | 48.0 kg |
| Interface | RJ45 Ethernet 10/100M |
| Warranty | 365-Day Factory Warranty |
Power and Cooling Infrastructure
Electrical Requirements
| Specification | Value |
|---|---|
| Phase | 3-Phase |
| Input Voltage | 380–415V |
| Input Frequency | 50–60 Hz |
| Input Max Current | 24 Amps |
| Power Port | LP34 Industrial Connector |
Infrastructure Note: This unit requires industrial 380-415V three-phase power-standard household outlets are incompatible. The LP34 connector excludes single-phase or residential deployment. Dedicated 32 amp three-phase breakers are the minimum requirement.
Liquid Cooling Specifications
| Specification | Value |
|---|---|
| Inlet Coolant Temperature | 20–50°C |
| Coolant Flow Rate | 16.0–20.0 L/min |
| Coolant Pressure | ≤3.5 bar |
| Working Coolant | Antifreeze / Pure Water / Deionized Water |
| Coolant pH Range | Antifreeze: 7.0–9.0; Pure Water: 6.5–7.5; Deionized Water: 8.5–9.5 |

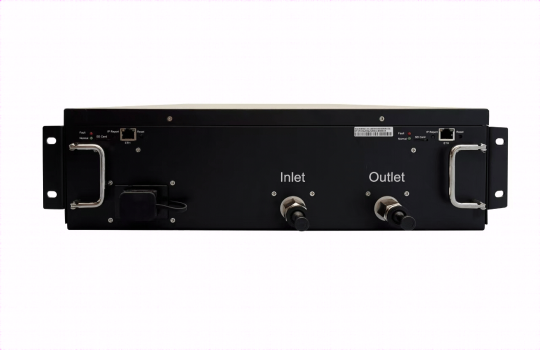

| Coolant Pipe Connector Diameter | OD14 mm |
| Storage Temperature | -20°C to 70°C |
| Operating Humidity | 10–90% (non-condensing) |
Algorithm and Mining Capabilities
The SHA-256 algorithm powers Bitcoin, Bitcoin Cash, and Bitcoin SV, representing the most secure and widely recognized hashing standard in the cryptocurrency industry. The U3S23H is optimized for:
-
Bitcoin (BTC) – Primary target
-
Bitcoin Cash (BCH) – Alternative SHA-256 coin
-
Bitcoin SV (BSV) – Additional mining option
Strategic Investment Considerations
Compelling Advantages
The U3S23H offers several distinct benefits for industrial operators:
-
Industry-Leading Efficiency: At 9.5 J/TH, this unit delivers the best efficiency in the current Antminer lineup, reducing electricity costs per terahash.
-
Petahash Density: The first production miner to exceed 1 PH/s in a single unit, dramatically reducing floor space requirements.
-
Fleet Simplification: One unit replaces approximately six S19-class machines, streamlining operations and reducing maintenance overhead.
-
Price Resilience: Remains profitable even if Bitcoin drops to approximately $44,000, providing a buffer against market volatility.
-
Extended Warranty: The 365-day factory warranty offers peace of mind for large-scale deployments.
Operational Requirements
The U3S23H demands specific infrastructure that not all facilities can provide:
-
Three-Phase Power: Requires 380-415V three-phase electrical service—not available in residential or small commercial settings.
-
Liquid Cooling Infrastructure: Cannot operate with air cooling; needs a closed-loop water system with a coolant distribution unit and heat rejection capabilities.
-
Thermal Management: Each unit generates approximately 11.0 kW of thermal load, necessitating substantial cooling capacity.
-
Rack Depth: The 900mm chassis may require deeper industrial racks than standard 1000mm depth provides.
Pricing Context
The U3S23H is priced at approximately $28,000 to $32,500 per unit, reflecting its flagship status and industrial-grade engineering.
Ideal Use Cases
This miner excels in the following scenarios:
-
Industrial mining operations with existing 380-415V three-phase power and hydro infrastructure
-
Colocation facilities equipped to support high-density liquid-cooled deployments
-
Farms deploying three or more units where endpoint reduction provides tangible operational savings
-
Operations with electricity rates at or below $0.07/kWh
-
Facilities optimizing hashrate per rack and per cooling kilowatt
This miner is not suitable for:
-
Single-unit purchases (the S23 Hydro 580TH is a better fit for smaller deployments)
-
Facilities without hydro cooling infrastructure
-
Residential or home-based operations
-
Operations with electricity rates exceeding $0.215/kWh
Important Note: The density premium is real. Two standalone S23 Hydro 580TH units deliver nearly identical aggregate hashrate at the same efficiency as one U3S23H. For one or two units, the premium may not be justified. At a full rack (14 units), the management consolidation savings become compelling.
